Litebody: Installation, Configuration and Deployment
The following document is a brief description of how to configure and deploy litebody along with its dialogue manager.
Servlet Deployment Overview
The project is to be deployed as a Java servlet and are deployed on the server using a compliant "servlet container". Further documentation would provide instructions specific to Apache Tomcat as a servlet container.

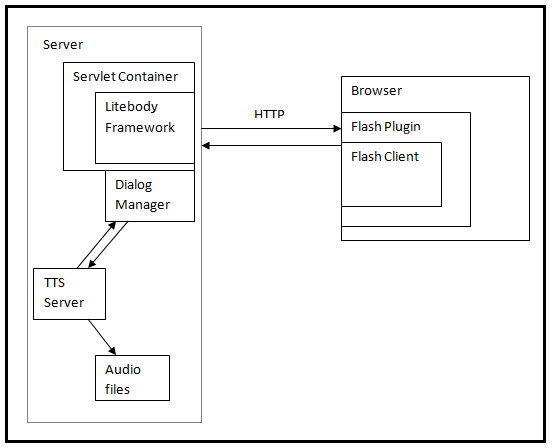

The above figure provides an overview on how the components interact with each other.
Minimum Server Requirements:
- Windows XP or greater/Linux
- 1.5ghz Processor
- 2GB of RAM
- 1+GB of Hard Drive space.
Setting up the server
Further instructions on setting up the litebody assumes installation of JRE and Tomcat on the server, and the Adobe Flash web-browser plugin on clients.
The LiteBody server has been configured to use the FreeTTS or Loquendo (via their proprietary API) speech synthesizers; the following walks through installation with FreeTTS.
Add the following files in the lib folder of the Litebody TTS project.
From FreeTTS site, download the following files:
If you are using the FreeTTS engine, you will need to download the following jars from Tritonus site:
If you are using the Loquendo TTS engine, you will need to download and compile the following dlls/so. The files to compile the dlls/so can be found at here
, then build the following .so or .dll files for based on your server's operating system:
- lame_enc.dll (for windows)
- lametritonus.dll (for windows)
- liblametritonus.jnilib (for both)
- liblametritonus.so (for linux)
- libmp3lame.dylib (for linux)
Deploy a webAgent server
- For the litebody project, build an executable JAR file by using the Ant tool (build.xml file). Once the build is successful, it would generate a “litebody.jar” file
- In webapps folder of the tomcat directory, copy over the webAgent project
- In the webAgent project folder, create a “WEB-INF” folder. Also create a “lib” folder (WEB-INF\lib) and copy the “litebody.jar” generated above in the lib folder.
- Create a web.xml file with the needed configuration settings. More information on how to setup the web.xml file is given in the “web.xml overview” section below.
- Modify the serverURL value in the webAgent.properties file to point to the correct URL. The location of the properties file is under the Config folder in webAgent project.
- Start tomcat service and check if the tomcat home page shows up on the browser when requested for http://localhost:8080
- Open the url, http://localhost:8080//agent to check to see if the deployment was successful.
Deploy the Litebody Client
- To deploy the Litebody Client, download the LiteBodyClient project from svn and open webAgent.fla using Flash CS4 or above.
- Once you have loaded up the fla file, publish the project, and place the resulting swf and html file inside the appropriate folder in your tomcat webapps folder.
- Inside the webapps folder containing the swf and html file, create a new folder called Config, and create a webAgent.properties file with the following information in it:
- (Without the quotes) "serverURL=http://serverURL/agent", for additional options, please read the example webAgent.properties provided in the SVN.
- Start the tomcat service, and check navigate to the html to start interacting with the system.
Please note that a sample configuration of the project is provided in the repository under the litebody-test folder.
Overview of web.xml
All configuration for litebody is done in the web.xml file. This example shows the general layout of the file. Note that the servlet standard gives a lot more possible configuration; this is just what we're using at the moment. Most of the interesting configuration is in the "init-param" elements.
<?xml version="1.0" encoding="utf-8"?>
<display-name>Testing the new Litebody protocol</display-name>
<!-- Additional parameters go here -->
|webframe.dialogue-manager||REQUIRED||fully-qualified class name of an implementation of the
|webframe.user-manager||NONE||fully-qualified class name of an implementation of the
UserManager interface; allows an app to customize
things like user authentication.|
|webframe.log-manager||NONE||fully-qualified class name of an implementation of the
LogManager interface; allows an app to customize logging conversation events.|
|webframe.session-timeout-minutes|| 10 minutes||A conversation is considered to be terminated if there
is no contact from a client within this time period|
|webframe.session-timeout-poll-minutes||value of session-timeout-minutes||the litebody polls at this interval to check if any idle conversations should be terminated|
|webframe.tts.server||localhost||hostname of TTS server|
|webframe.tts.port|| 7000|| port# of TTS server|
|webframe.tts.voice|| Susan|| TTS voice to request from the TTS server|
|webframe.validate|| FALSE|| if true, outgoing messages are checked against the
XML schema; this is good for debugging|
